XML FILE CREATION FOR CUSTOMS FILE (SOC) – USER MANUAL

XML FILE CREATION FOR CUSTOMS FILE (SOC) – USER MANUAL

XML FILE CREATION FOR CUSTOMS FILE (SOC) – USER MANUAL

Version: V1.0.38.2
Prepared by: Arul Jothi. M
Date: 22/12/2025

Table of Contents

  1. Introduction
  2. System Requirements
  3. Logging In
  4. SOC Manifest XML Creation
     4.1 Introduction
     4.2 Message Type
     4.3 BL Number Entry
     4.4 Generating a New SOC XML File
     4.5 Values Fetching Criteria – Shipment, Vessel & Container
     4.6 Trader Information Capturing
     4.7 EDI Mapping Requirements
     4.8 Data Required for Package, Weights & Volumes
     4.9 Shipping Marks & Cargo Description
  5. Troubleshooting Common Issues
  6. Frequently Asked Questions (FAQs)
  7. Support

1. Introduction

The SOC (Shipper-Owned Container) Customs File Creation module is used to generate the SOC Manifest XML in the ASYCUDA-compliant format required by Sri Lanka Customs. This file includes essential shipment elements such as:

  • Master B/L details
  • House B/L information (if applicable)
  • Container details
  • Cargo descriptions
  • Exporter/Consignee/Notify details
  • Vessel & voyage data
  • Transporter information

The system auto-extracts all required fields and converts them into the ASYCUDA XML structure. This automation ensures:

  • Zero manual XML typing
  • Reduced data-entry errors
  • Faster submission to Customs
  • Full compliance with regulatory norms for NVOCC operators

2. System Requirements

Supported Browsers:

  • Google Chrome 90+
  • Mozilla Firefox 85+

3. Logging In

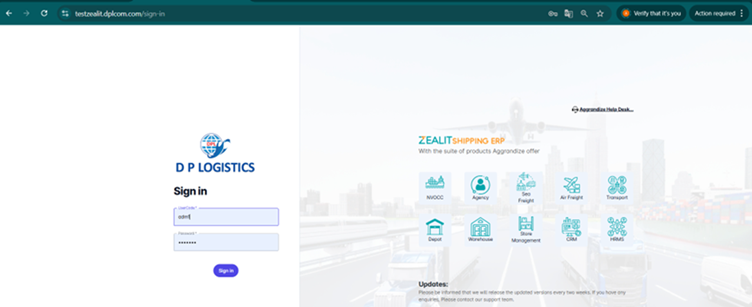

  1. Open ZEALIT 2.0 in your browser.
  2. Log in using your assigned credentials.

A screenshot of a login page AI-generated content may be incorrect.

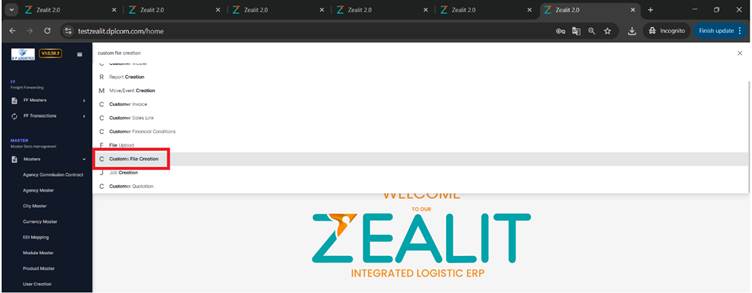

  1. Navigate to Customs File Creation → SOC Manifest via Dashboard or Search.
    A screenshot of a computer AI-generated content may be incorrect.

4. SOC Manifest XML Creation

4.1 Introduction

The SOC Manifest module prepares the export/import manifest in ASYCUDA XML for NVOCC operations.
This module captures all BL, container, cargo & voyage data from the SOC booking workflow.

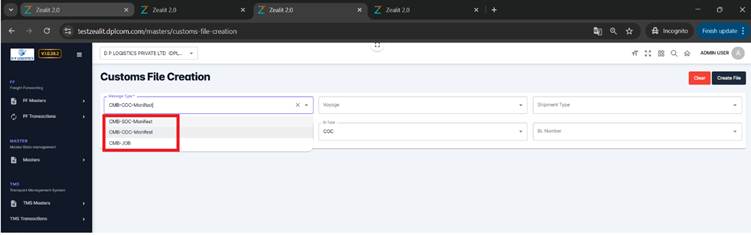

4.2 Message Type

To generate the SOC XML, enter:

Message Type: CMB-SOC-Manifest

A screenshot of a computer AI-generated content may be incorrect.

This identifies the file as a SOC-based manifest for Sri Lanka Customs.

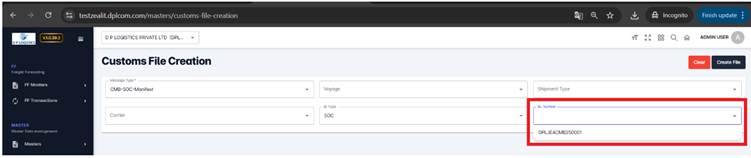

 4.3 BL Number Entry

Enter the correct BL Number in the BL Number input field.

  • The system fetches all shipment-level data linked to the BL.
  • Ensure the BL is created and holds complete shipment details.

A screenshot of a computer AI-generated content may be incorrect.

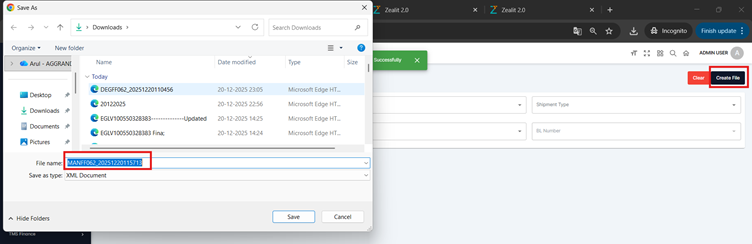

4.4 Generating a New SOC XML File

  1. Click Create New in the Customs File Creation screen.
  2. The system generates an XML record for the selected BL.
  3. Errors will highlight missing mandatory fields (fix & regenerate).

A screenshot of a computer AI-generated content may be incorrect.

4.5 Values Fetching Criteria – Shipment, Vessel & Container

Below is how the XML tags get populated:

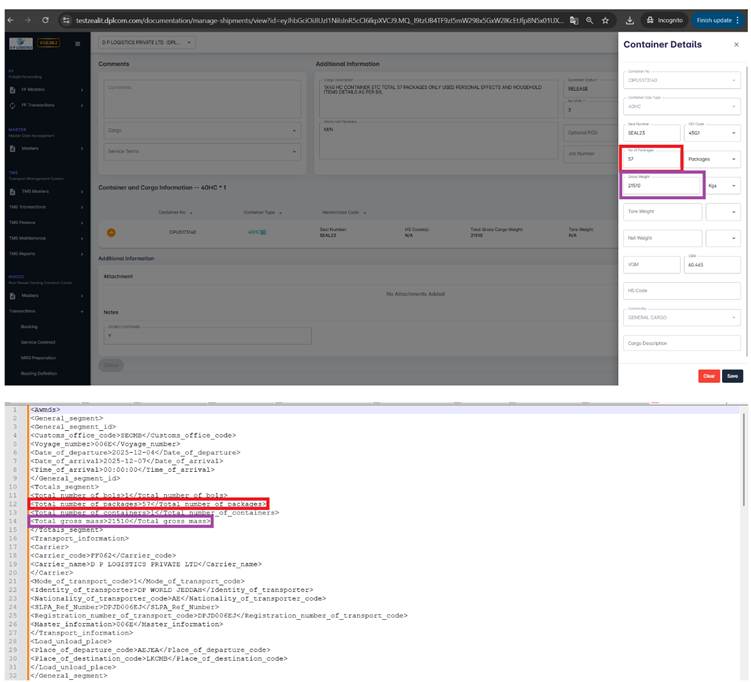

A. Total Packages & Gross Mass

Captured from the Container Details screen:

  • Total_number_of_packages
  • Total_gross_mass

👉 Both are mandatory to generate SOC XML.

A screenshot of a computer AI-generated content may be incorrect.

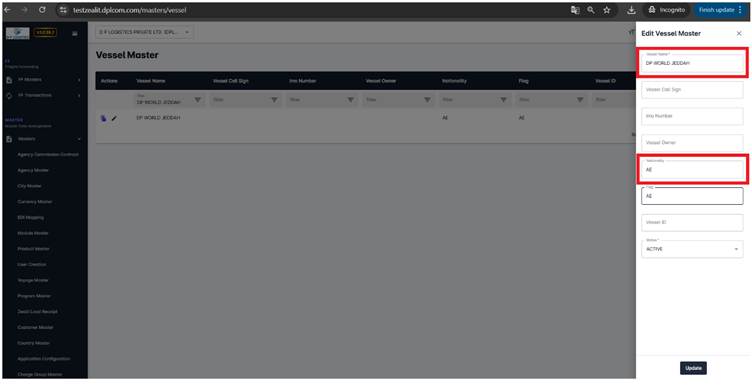

B. Vessel Master Information

Fetched from Vessel Master → Nationality Column:

  • Nationality_of_transporter_code

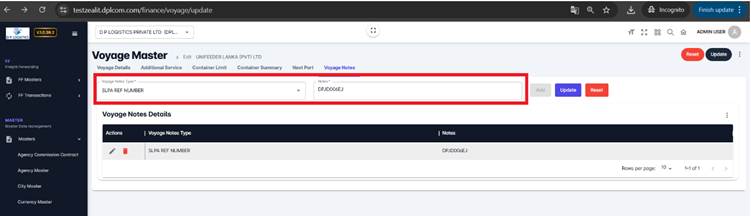

Fetched from Voyage Master → Notes Column:

  • SLPA_Ref_Number
  • Registration_number_of_transport_code
  • Master_information

Make sure voyage notes are updated — otherwise XML will show missing fields.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

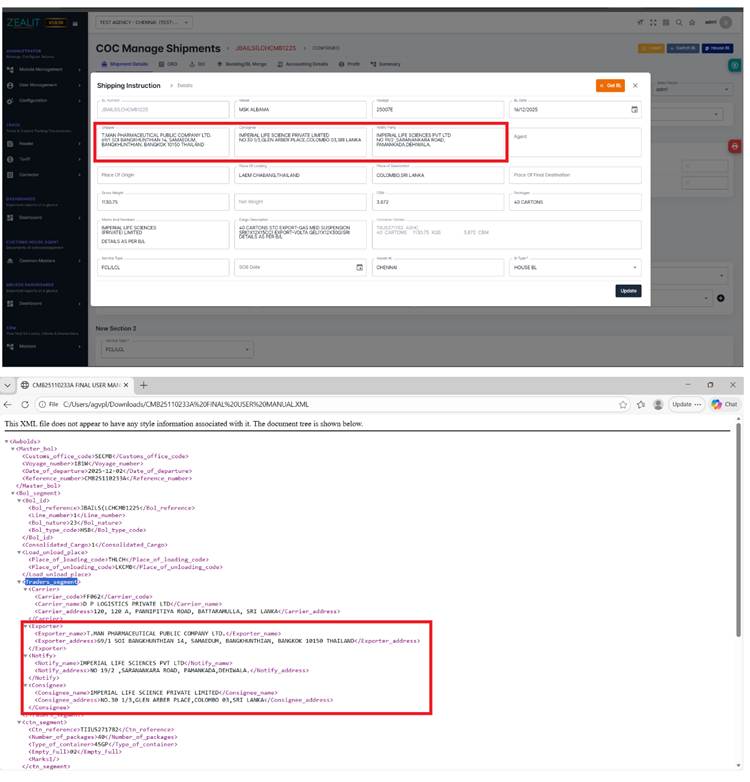

4.6 Trader Information Capturing

Captured directly from SI Instruction Page → Booking Screen:

  • Exporter name & address
  • Consignee name & address
  • Notify party details

You do not need to modify master data — SI page edits are enough.

4.7 EDI Mapping Requirements

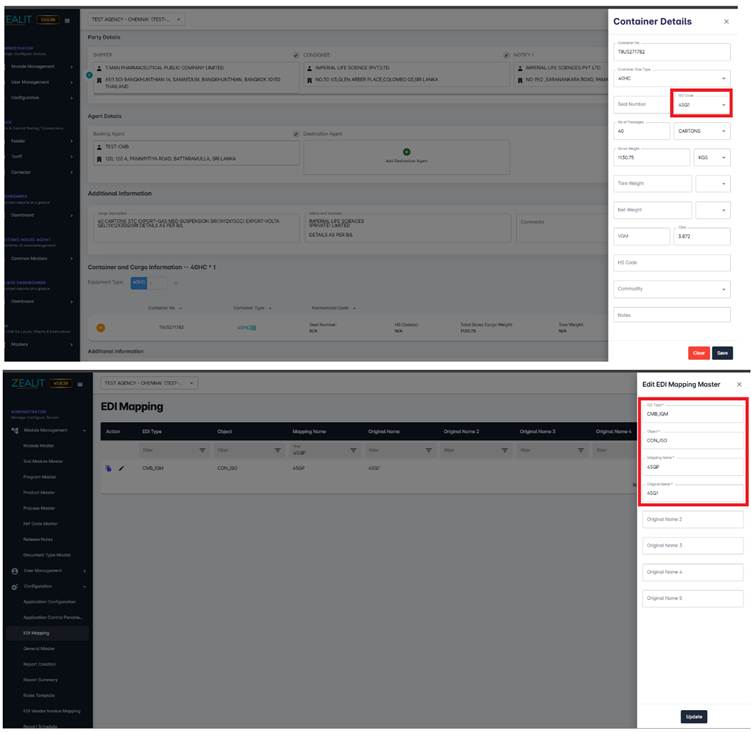

A. Container Type Mapping

Use EDI Mapping → CMB_IGM → CON_ISO
Example:

System Type

XML ISO Code

45GP

45G1





A screenshot of a computer AI-generated content may be incorrect.

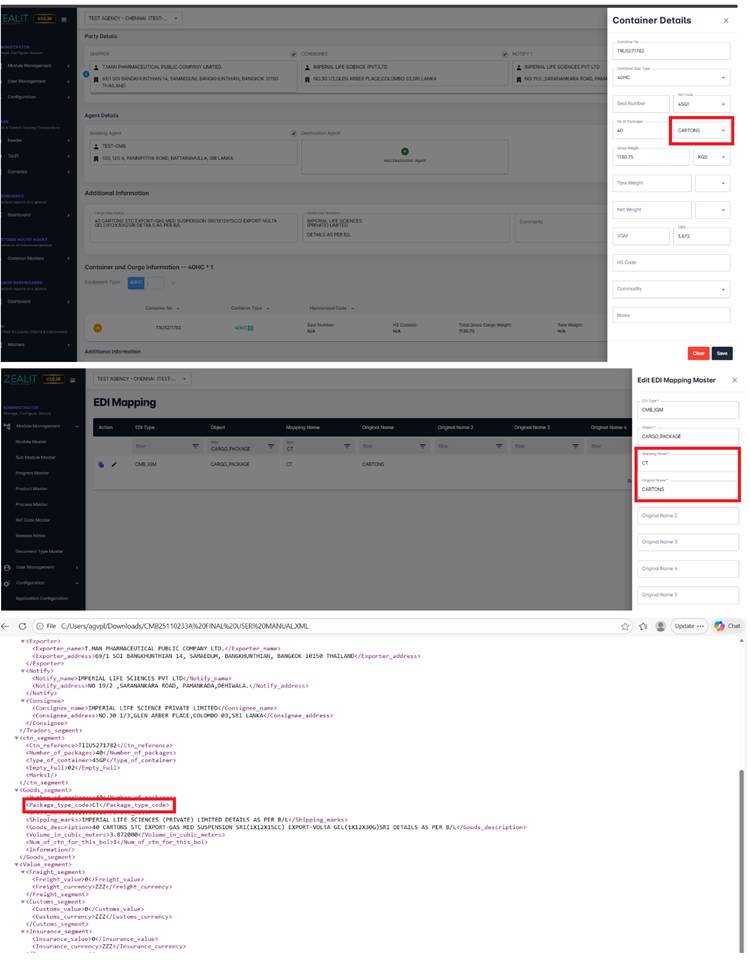

B. Package Type Mapping

Package codes come from Container Details → Package Code.
Map them here:
EDI Mapping → CMB_IGM → CARGO_PACKAGE

A screenshot of a computer AI-generated content may be incorrect.

Example:

Package Code

Description

CT

CARTONS

4.8 Package, Gross Mass & Volume

Captured from Container Details:

  • Number of packages
  • Gross mass
  • Volume in CBM

Ensure mandatory fields are filled to avoid XML failures.

A screenshot of a computer AI-generated content may be incorrect.

4.9 Shipping Marks & Cargo Description

Fetched from Booking Screen:

  • Shipping marks → from "Marks & Numbers" field
  • Goods description → from "Cargo Description" field

Whatever text is entered there directly appears in the XML file.

5. Troubleshooting Common Issues

Issue

Suggested Fix

Create New button not showing

Check user permissions

BL details not loading

Verify BL is created & mandatory fields filled

XML not generating

Check SI, container details, and vessel data

Missing voyage-related XML tags

Ensure Voyage Notes are entered

Package or ISO mismatch

Update EDI Mapping table

6. Frequently Asked Questions (FAQs)

Q1: Can I edit SI details after generating XML?
Yes — but regenerate the XML after updating details.

Q2: Are House B/Ls compulsory for SOC?
No — only required if shipment structure includes HBLs.

Q3: Why is my SLPA Ref not appearing?
Because Voyage Notes are empty — update them.

Q4: Can I generate multiple XML files for the same BL?
Yes — if the booking remains in editable stage.

7. Support

For help, contact:
